Analysis of the important role of J1939 9 pin cable in the automotive industry

Analysis of the important role of J1939 9-pin cable in the automotive industry

As a core communication component based on CAN bus technology, J1939 9-pin cable has become an indispensable "nerve center" in the fields of commercial vehicles, engineering machinery, and new energy vehicles through standardized communication protocols, high reliability physical layer design, and multi domain expansion capabilities. Its importance is reflected in the following three aspects:

1、 Unified communication standards to solve industry collaboration challenges

The cornerstone of protocol standardization

The J1939 protocol was developed by SAE in 1994 to address the issue of communication fragmentation in heavy-duty vehicle electronic devices. It standardizes key parameters such as engine speed and coolant temperature by defining a 29 bit extended frame identifier, parameter group number (PGN), and suspicious parameter number (SPN).

Cross vendor compatibility guarantee

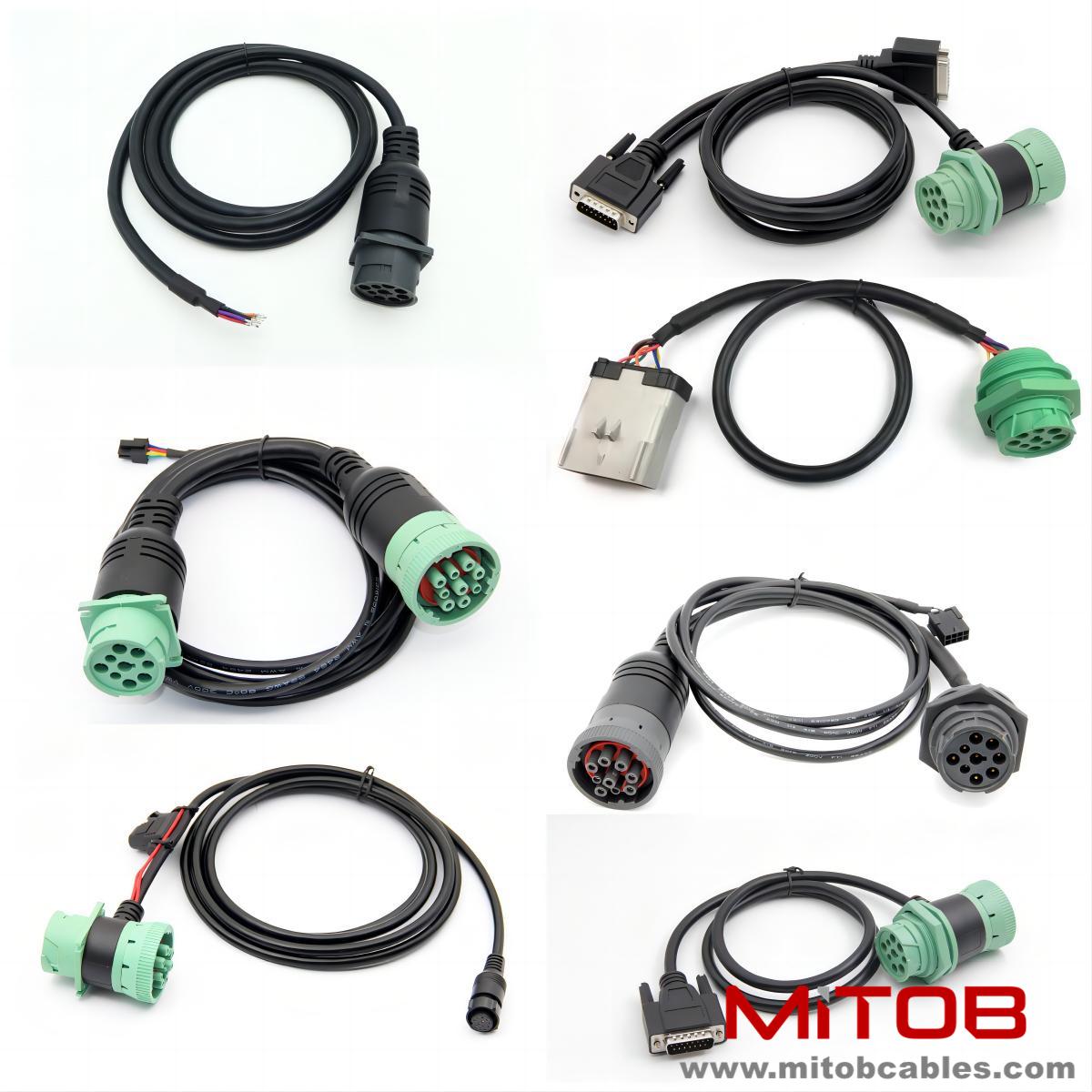

The physical interface of the 9-pin cable is combined with the mandatory requirements of the J1939 protocol to enable "plug and play" for devices such as ECUs and sensors from different manufacturers. In the field of electric trucks, battery management systems (BMS) and charging stations transmit various data such as voltage and current through 9-pin cables, and standard compatibility shortens the response time for charging fault diagnosis to a certain range.

2、 High reliability design to meet the challenges of harsh working conditions

Physical layer protection upgrade

The 9-pin cable adopts a twisted pair shielding design, combined with IP67/IP69K protection level, which can resist vibration, salt spray and high-voltage impact in mining vehicles, construction machinery and other scenarios

Data transmission stability guarantee

Multi domain expansion drives industry technological innovation

New energy vehicle charging infrastructure

The 9-pin cable supports multi packet transmission mechanism in this scenario, which can synchronously transmit key parameters such as battery SOC and temperature, ensuring safe and efficient charging process.

Internet of Vehicles and Remote Diagnosis

The J1939 IoT recorder collects vehicle operation data through a 9-pin interface and uploads it in real-time using a 5G network.

Integration of industrial automation

In the fields of hydraulic mobile elevators, agricultural machinery, etc., 9-pin cables achieve cross industry equipment interconnection through integrated derived protocols.
