The core advantages of J1939 male to J1939 2 female cable are signal splitting, protocol compatibility, physical adaptation, easy installation, and environmental adaptability, which can significantly improve the efficiency and reliability of heavy vehicle diagnosis, data acquisition, and equipment expansion. The following is a specific analysis:

1. Signal diversion and multi device connection

Function implementation: The cable is connected to the vehicle J1939 interface through a male connector, and two female connectors can be simultaneously connected to diagnostic tools, data recorders, or monitoring devices to achieve parallel signal transmission. For example, in truck maintenance, technicians can simultaneously use a scanner to read fault codes and monitor real-time engine parameters through a data logger, without the need to repeatedly plug and unplug equipment.

Application scenario: Suitable for scenarios where multiple J1939 devices need to be connected simultaneously, such as collecting ECU data from multiple trucks in a fleet management system, or synchronously monitoring the communication status of modules such as engines and transmissions during research and development testing.

2. Protocol compatibility and standardization support

J1939 protocol adaptation: J1939 is a universal communication protocol for heavy vehicles such as trucks and construction machinery. This cable strictly follows the SAE J1939 standard to ensure compatibility with devices from different manufacturers.

Data integrity assurance: By shielding cables and flame-retardant materials, electromagnetic interference (EMI) and signal attenuation are reduced, ensuring the stability of data transmission and meeting the high real-time requirements for diagnosis and monitoring.

3. Physical interface adaptation and scalability

Interface type support: Some models (such as J1939 Type 2 to Type 1) can solve compatibility issues with different vehicle port types.

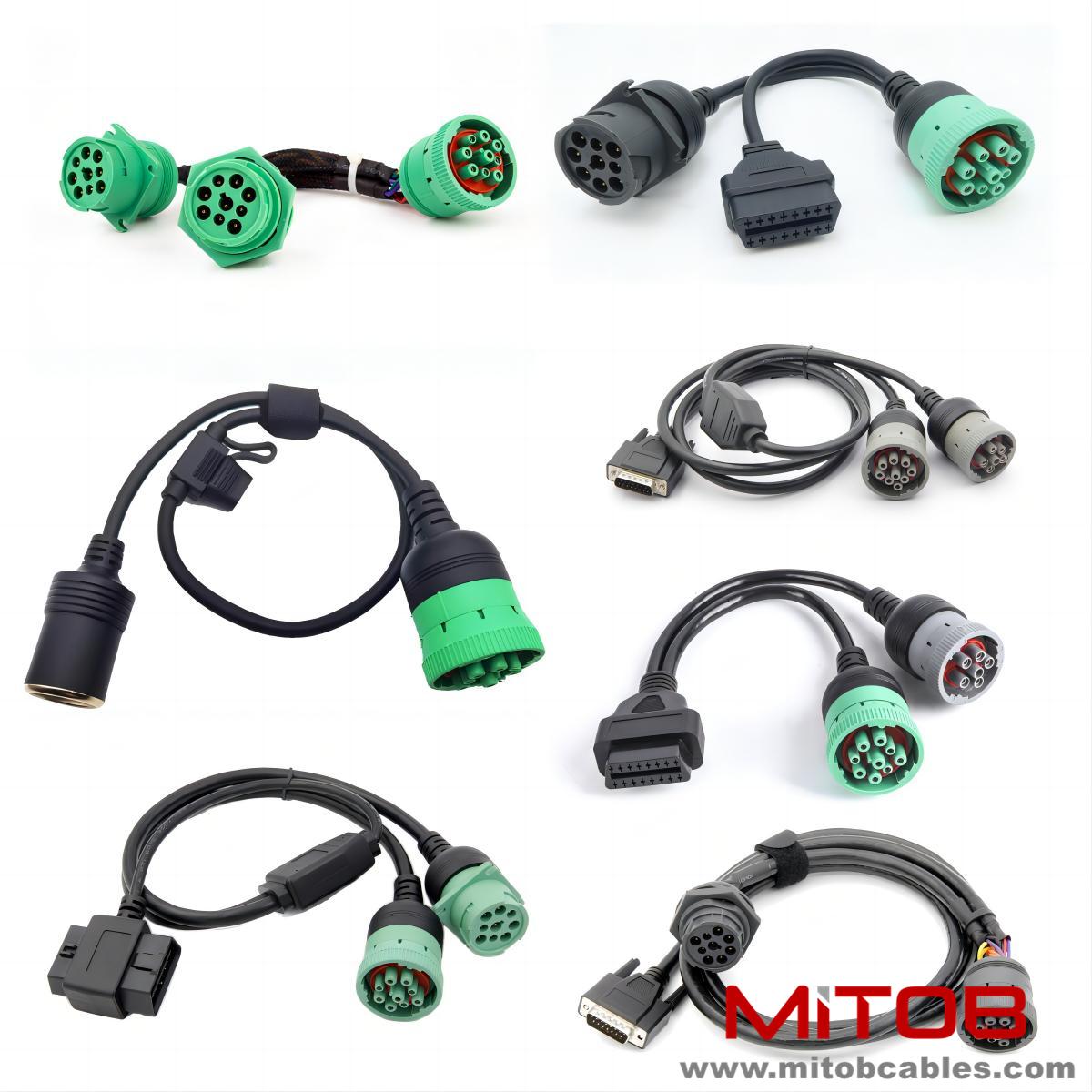

Y-shaped branching design: By using a Y-shaped structure, a single interface is extended to a dual female head to avoid poor contact or signal conflicts caused by the original vehicle line diversion. At the same time, a hidden installation design (such as a truck GPS tracking system) can protect the equipment from physical damage.

4. Installation convenience and cost optimization

Plug and play: No need for complex configuration or additional adapters, directly connect vehicle interfaces and devices, shorten debugging time.

5. Application

Truck diagnosis and maintenance: The repair shop connects the scanner and oscilloscope simultaneously through dual female cables to quickly locate engine faults and improve repair efficiency.

Fleet remote monitoring: Logistics companies use this cable to transmit vehicle ECU data to onboard GPS devices, achieving real-time location tracking and fuel consumption analysis, optimizing operating costs.

R&D testing: During the R&D phase, automobile manufacturers use multiple device connections to synchronously monitor the communication status of modules such as engines and transmissions, accelerating product iteration.
