Application of J1939 to OBD2 cable in vehicle networking data acquisition

Application of J1939 to OBD2 cable in vehicle networking data acquisition

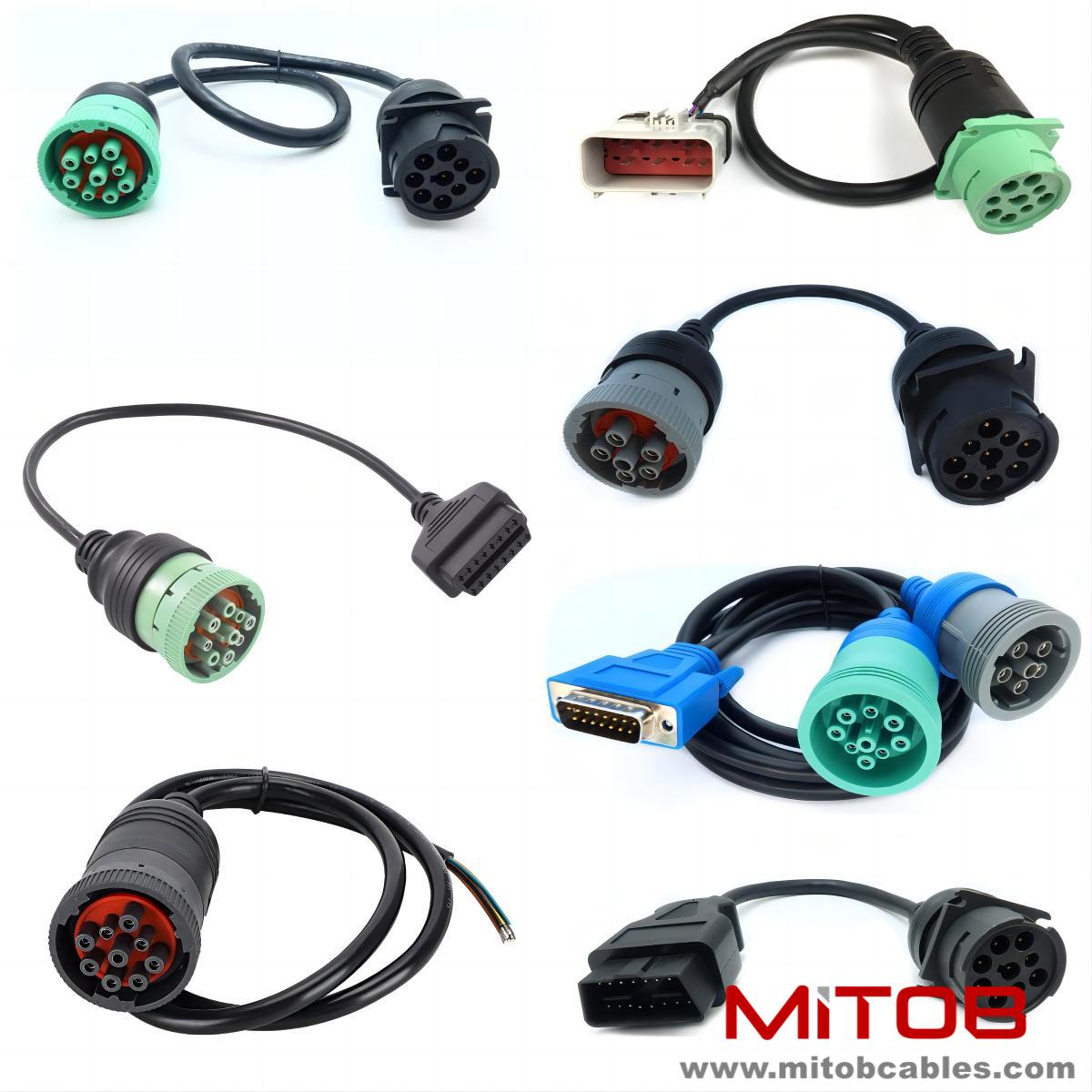

With the popularization of heavy-duty commercial vehicle networking technology, real-time collection, transmission, and analysis of vehicle operation data have become the core requirements for fleet intelligent management. J1939 to OBD2 cable serves as a standardized connection carrier between J1939 bus and vehicle networking terminals, achieving standardized collection and upload of heavy-duty vehicle operation data and supporting the implementation of vehicle networking systems.

In the scenario of vehicle networking data collection, the J1939 to OBD2 cable connects the J1939 diagnostic interface of heavy vehicles to the vehicle networking terminal, converts the vehicle operation data transmitted by the J1939 bus into OBD2 standard data format, and uploads it to the cloud management platform through the 4G/5G module of the vehicle networking terminal. During the data collection process, the cable supports filtering and screening of data frames, and can selectively collect key data according to the needs of the vehicle networking platform, reducing the bandwidth pressure of data transmission.

The core advantage of this application is the standardization and universality of heavy vehicle data collection, without the need to customize dedicated data collection lines for each heavy vehicle model, reducing the deployment cost of the vehicle networking system. At the same time, the real-time transmission characteristics of cables ensure that the cloud platform can grasp the vehicle's operating status in real time, providing data support for fault warning, path optimization, and fuel consumption management, and helping fleet operation and maintenance transform towards intelligence and refinement.
