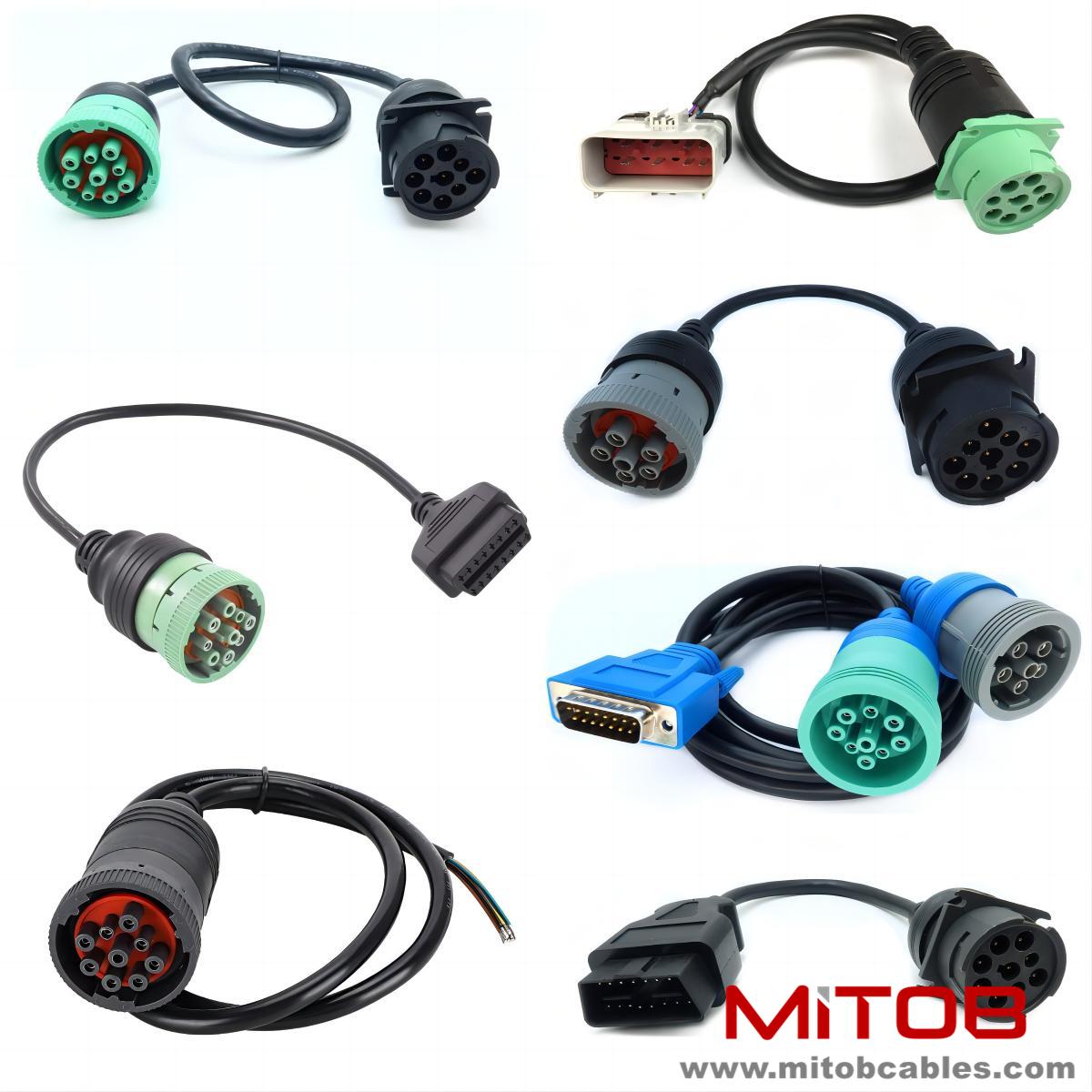

J1939 to open end pigtail cable assists in vehicle diagnosis and maintenance

J1939 to open end pigtail cable assists in vehicle diagnosis and maintenance

Various faults are inevitable during the operation of vehicles, and timely and accurate diagnosis and troubleshooting are crucial for ensuring the normal operation of vehicles and extending their service life. The J1939 to open end pigtail cable plays a crucial role in vehicle diagnosis and maintenance.

The J1939 protocol defines rich diagnostic fault codes (DTCs) and diagnostic messages (DMs), which have important guiding significance for the diagnosis and maintenance of vehicle faults. J1939 to the open end pigtail cable serves as a data transmission channel, accurately transmitting fault information from various ECUs of the vehicle to diagnostic equipment.

When a vehicle malfunctions, the relevant ECU will generate a corresponding DTC and send the DTC to the vehicle's diagnostic interface through the J1939 to the open end pigtail cable. Technicians use professional diagnostic tools to connect to the diagnostic interface and read DTC information. For example, if the engine malfunctions, the engine ECU will generate a DTC containing information such as the Fault Parameter Number (SPN) and Failure Mode Indicator (FMI). By reading this information, technicians can quickly determine the specific component and type of fault that occurred.

In addition to real-time fault diagnosis, the J1939 to open end pigtail cable also supports historical fault reading and clearing functions. Technicians can send corresponding instructions through diagnostic equipment, read historical fault information stored in the vehicle ECU through the cable, understand the past fault situation of the vehicle, and provide more comprehensive reference for fault analysis and maintenance. At the same time, after completing the fault repair, technicians can also clear the fault codes stored in the ECU through this cable to restore the vehicle to normal state.
