Connection and application of right angle J1939 splitter Y cable

Connection and application of right angle J1939 splitter Y cable

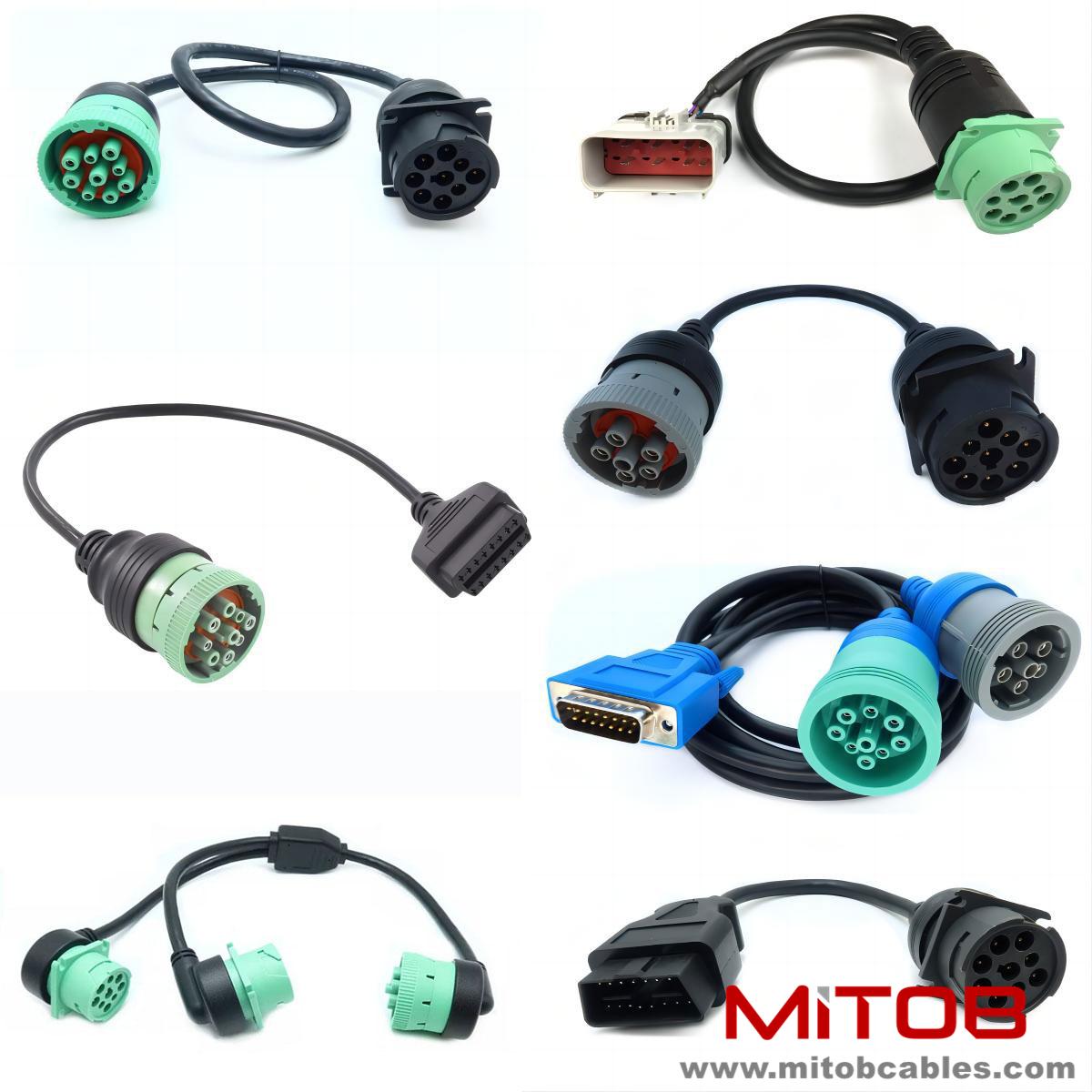

The connection method of right angle J1939 splitter Y cable is not complicated. One end of it is a standard J1939 interface, which can easily interface with the vehicle's backbone network; The other end splits into two interfaces that can connect different devices. In the field of agricultural machinery, the engine controller of tractors, the hydraulic system controller of agricultural tools, and the onboard navigation equipment can all be connected to the J1939 network through this cable. Through it, the engine controller can transmit real-time speed, torque, and other information to other devices, while receiving position information from navigation devices, thereby achieving precise farmland operation control, such as automatically adjusting the working status of agricultural tools according to the farmland boundary, improving agricultural production efficiency and operation accuracy.

In terms of construction machinery, the control system of the excavator's working arm, engine monitoring system, and display equipment in the cab also rely on the right angle J1939 splitter Y cable to achieve data exchange. It enables various systems to work together, ensuring precise and efficient movements of excavators during excavation, loading and unloading operations, and improving the operational performance and safety of construction machinery.
