Application prospects of J1939 male to J1939 female and 16 pin OBD2 female splitter Y cable

Application prospects of J1939 male to J1939 female and 16 pin OBD2 female splitter Y cable

The application prospects of J1939 male to J1939 female and 16 pin OBD2 female splitter Y cables are broad, and they have significant value in fields such as commercial vehicle diagnosis, remote information processing, fleet management, and vehicle modification

1、 Technical background and core advantages

The Standardization Status of J1939 Protocol

J1939 is the mainstream communication protocol in the commercial vehicle field, developed by SAE in the 1990s to address compatibility issues with heavy-duty vehicle electronic devices. It achieves real-time communication of key components such as engines, transmissions, and braking systems through unified data formats and transmission rules, becoming the foundation for diagnosis, remote information processing, and performance optimization.

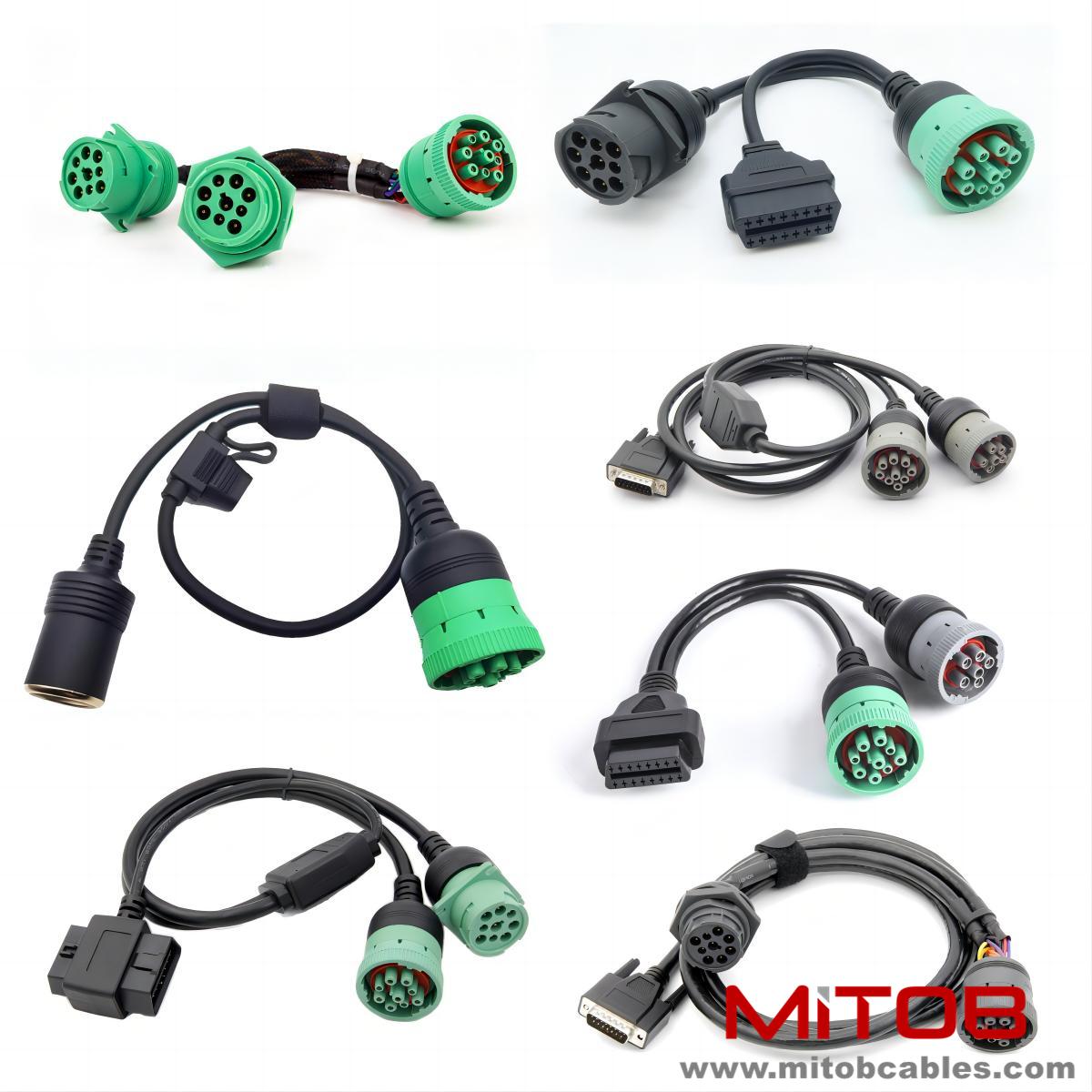

Design innovation of splitter Y cable

Interface compatibility: One end is a J1939 male connector, while the other end integrates both a J1939 female connector and a 16 pin OBD2 female connector, supporting a "one to two" connection mode.

Functional scalability: While retaining the original J1939 communication link of the vehicle, third-party devices (such as diagnostic instruments, GPS trackers, fuel consumption monitors) can be connected through the OBD2 interface to avoid the risk of line dismantling and modification.

Future prospects

With the acceleration of the electrification and networking process of commercial vehicles, splitter Y cables will evolve in the following directions:

High speed communication support: Integrated CAN FD or Ethernet interface to meet high bandwidth data transmission requirements (such as autonomous driving sensor data).

Security encryption function: Add a data encryption module to prevent remote attacks from tampering with key control instructions in the J1939 network.

Miniaturization design: using integrated chips and flexible circuit boards to reduce cable volume and adapt to compact cab layouts.
