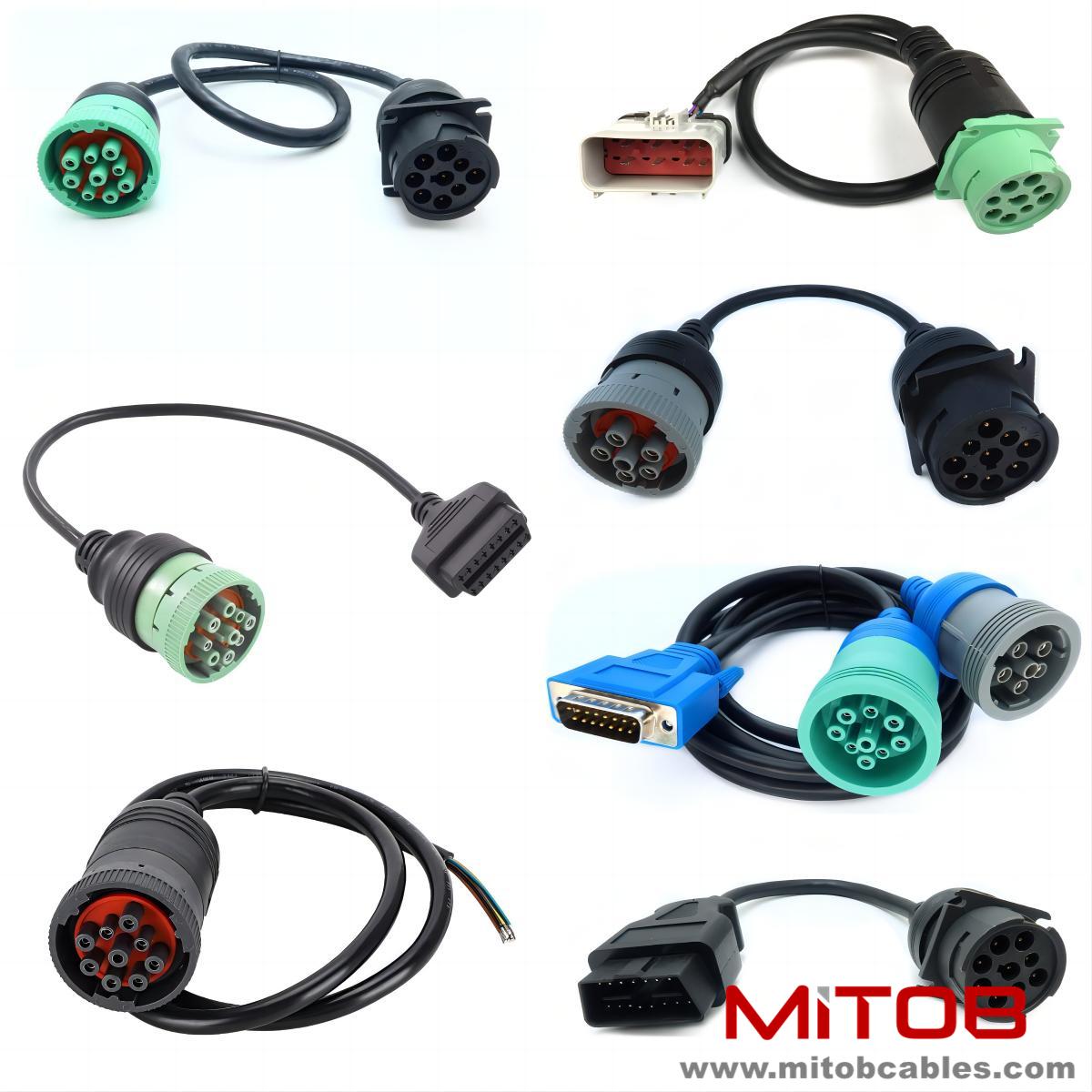

The RP1226 to J1939 cable is a powerful assistant for industrial vehicle intelligence. It provides standardized solutions for data exchange, diagnostic testing, and equipment connection between internal ECUs of vehicles through protocol conversion and efficient communication, helping industrial vehicles achieve intelligent upgrades. The following is an analysis of its specific role:

1、 Protocol conversion and compatibility support

The core function of RP1226 to J1939 cable is to achieve bidirectional conversion between RP1226 protocol and J1939 protocol. J1939, as a high-level protocol based on CAN bus, is widely used in heavy vehicle fields such as trucks, buses, agriculture, and construction equipment, supporting efficient communication between electronic control units (ECUs). RP1226 is a diagnostic interface standard commonly used for vehicle fault diagnosis and testing equipment. Through protocol conversion, this cable enables seamless integration of devices with different protocols, such as connecting diagnostic tools (RP1226 end) with vehicle ECU (J1939 end) to achieve data interoperability. This compatibility support solves the communication barriers caused by the coexistence of multiple protocols in industrial vehicles, providing a basic guarantee for intelligent upgrading.

2、 Efficient data transmission and real-time communication

The J1939 protocol adopts the CAN 2.0B standard, supports communication rates of 250Kbps or 500Kbps, and allows transmission of 8-byte data through extended frame formats. The RP1226 to J1939 cable fully utilizes this feature to ensure real-time and reliable transmission of key data such as vehicle status and control commands.

3、 Standardized diagnosis and fault management

The intelligence of industrial vehicles relies on precise fault diagnosis and health management. The J1939 protocol defines standardized diagnostic messages and services (such as diagnostic requests, responses, confirmations, etc.), while the RP1226 to J1939 cable converts the protocol, allowing external diagnostic tools to directly read vehicle fault codes (DTCs), parameter group numbers (PGNs), and other data.

4、 Multi device connection and system integration

The intelligence of industrial vehicles involves the collaborative work of multiple subsystems, such as power systems, hydraulic systems, navigation systems, etc. The RP1226 to J1939 cable supports parallel connection of multiple devices, such as interconnecting engine ECU, transmission controller, display terminal, etc. through the same bus to achieve data sharing and centralized control. This integrated design reduces the complexity of the wiring harness, lowers costs, and enhances the scalability of the system.
