Application of J1939 Cable in Vehicle Network

Application of J1939 Cable in Vehicle Network

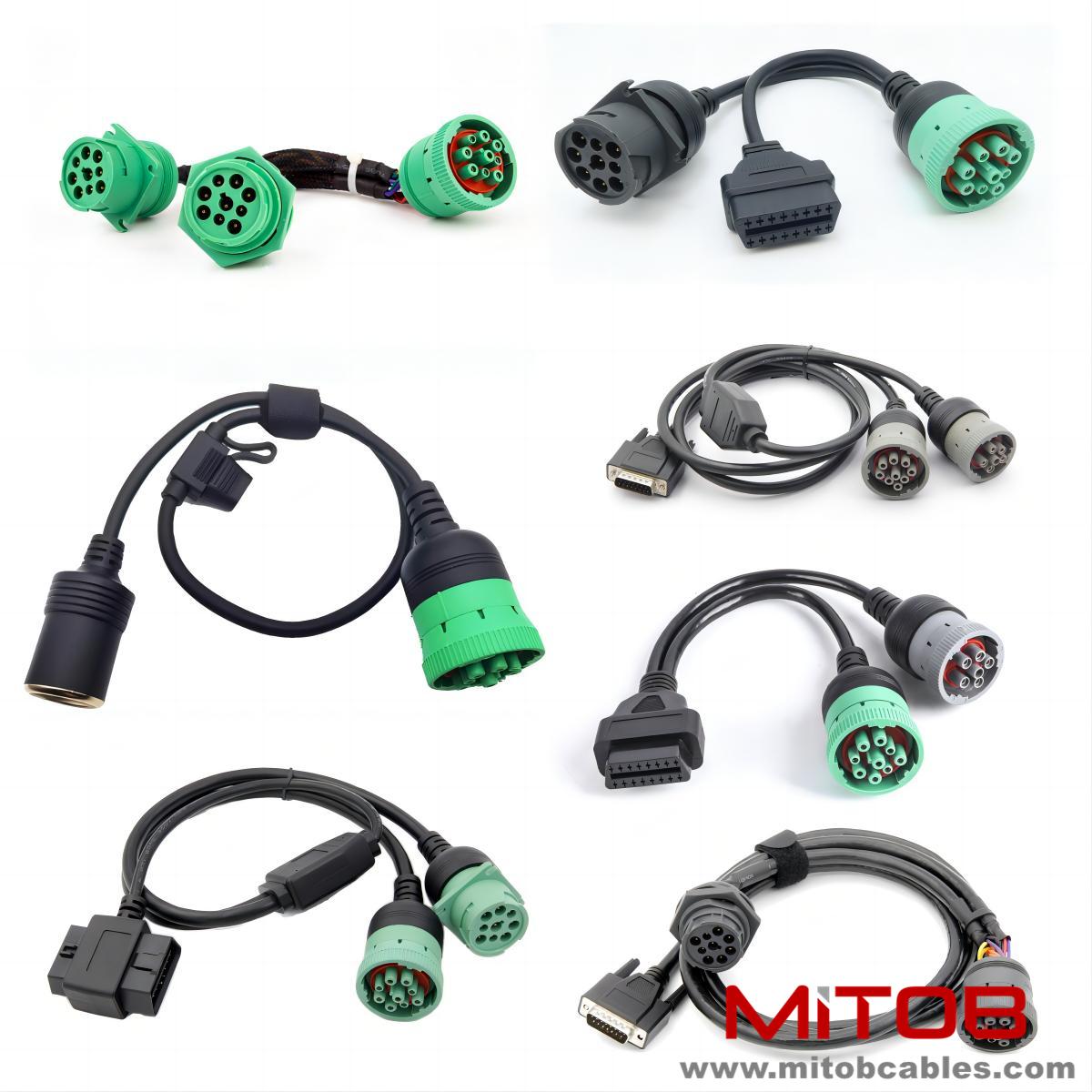

J1939 cable is a core component of modern commercial vehicles, engineering machinery, and ship networks. It is mainly used to connect various electronic control units (ECUs) and achieve real-time data exchange between the engine, transmission, braking system, and vehicle electronic modules. The J1939 protocol is based on CAN bus technology, ensuring efficient and reliable information transmission within the vehicle.

In heavy-duty trucks, the engine control unit sends key parameters such as engine speed, oil pressure, fuel consumption, and temperature in real-time to the transmission and body control unit through the J1939 network. This real-time communication enables vehicles to intelligently adjust power output, improving fuel efficiency and safety. In addition, the braking system and stability control system also rely on J1939 cable transmission sensor signals to achieve precise braking and anti lock braking control.

J1939 cables are also widely used in construction machinery and agricultural equipment. In equipment such as excavators and tractors, the hydraulic system, power transmission system, and control console are interconnected through a cable network to achieve collaborative work.

In addition, J1939 cables also play a critical role in vehicle diagnosis and remote monitoring. Through network communication, maintenance personnel can obtain vehicle fault codes, sensor status, and historical operating data, achieving rapid fault diagnosis and maintenance. Modern fleet management systems also rely on J1939 cable transmission data to achieve vehicle scheduling optimization and operational management.

In short, J1939 cables are not only the "information channel" of vehicle electronic systems, but also the physical foundation for intelligent control and safety assurance. Its reliability directly affects the efficiency of vehicle operation, operational safety, and maintenance convenience, and is an indispensable core component of modern vehicles.
