What kind of wiring harness is J1939 cable? What are the functions?

What kind of wiring harness is J1939 cable? What are the functions?

J1939 is a communication protocol based on the CAN bus, widely used for data communication in heavy vehicles and construction machinery. J1939 cable, as the core physical carrier of the entire communication system, plays a crucial role in signal transmission. It not only needs to transmit data, but also ensure that signals are not disturbed in complex environments.

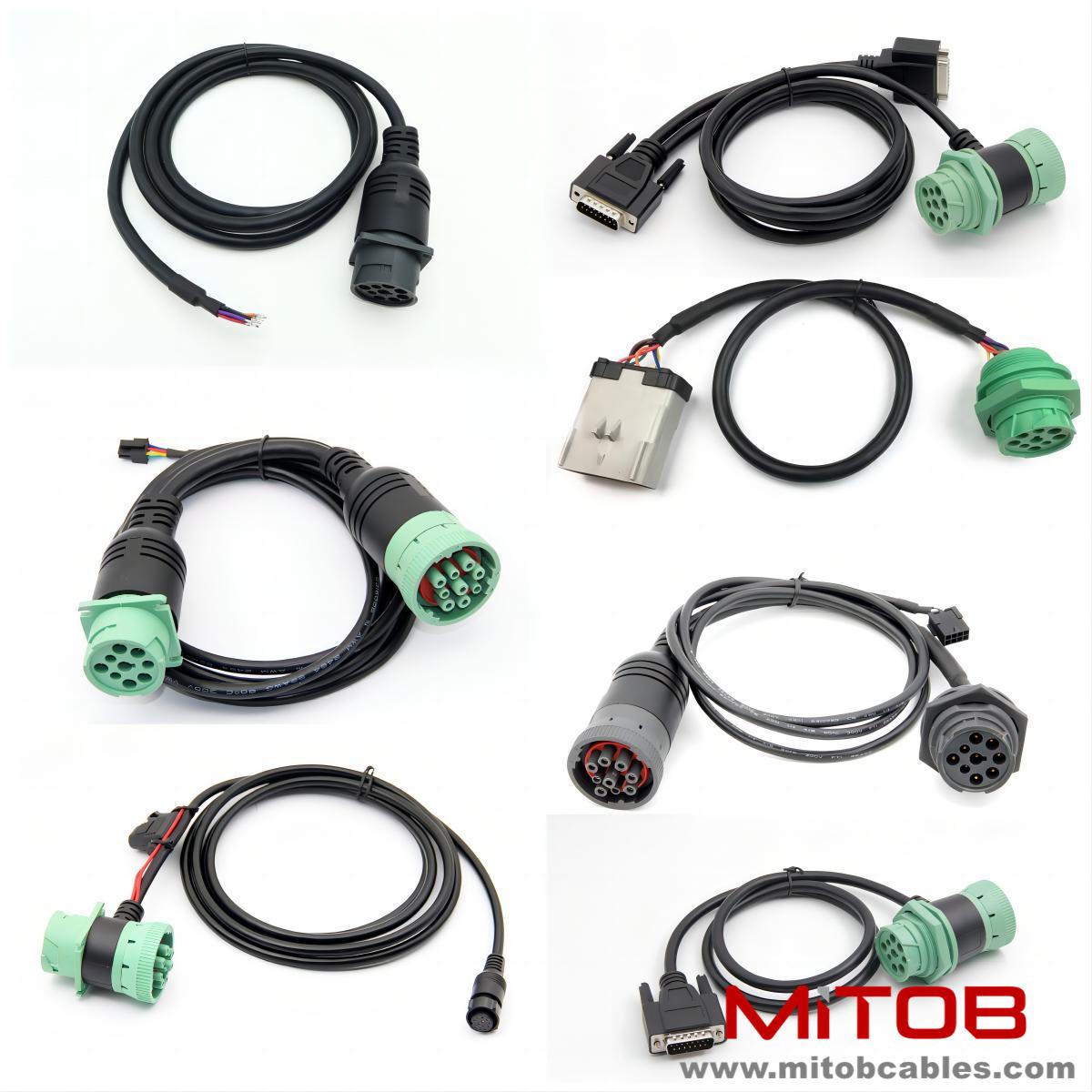

J1939 cables typically consist of conductors, insulation layers, shielding layers, and outer sheaths. Conductors often use multi stranded copper wires to improve flexibility and durability; The shielding layer is made of woven mesh or aluminum foil to reduce electromagnetic interference; The outer sheath is made of wear-resistant and corrosion-resistant materials such as PVC and polyurethane, which are suitable for long-term use in the vehicle environment.

This type of cable is responsible for data transmission tasks in vehicle electronic control systems, such as engine control, transmission control, brake systems, and body electronic modules. It has a wide range of application scenarios, including trucks, buses, excavators, tugboats, etc., and needs to work stably in high temperature, high humidity, oil pollution, and vibration environments.

Choosing the appropriate J1939 cable can ensure the stability of data transmission and improve the reliability of vehicle systems. In the future, with the development of intelligent vehicles and autonomous driving, the requirements for cable anti-interference, data transmission rate, and durability will continue to increase. J1939 cable is not only a communication line, but also an important foundation for ensuring vehicle safety and efficiency.
