Function and role of J1939 to RP1226 cable

In the field of heavy-duty commercial vehicles, J1939 and RP1226 are the two core communication and interface standards, and the J1939 to RP1226 cable is the key component that connects the two communication systems. Although it may seem small, it carries the core function of vehicle data exchange.

RP1226 is a specialized interface standard for commercial vehicle remote information processing, using a 14 pin standardized connector designed specifically for third-party devices to access vehicle data. It is mainly used for ELD electronic driving record devices, vehicle networking terminals, remote diagnostic devices, etc., to achieve compliant data collection and remote monitoring. The pin definitions and physical forms of the two interfaces are completely different, and they cannot be directly connected. Ordinary wiring harnesses cannot complete signal adaptation, and problems such as data loss and signal interference may also occur.

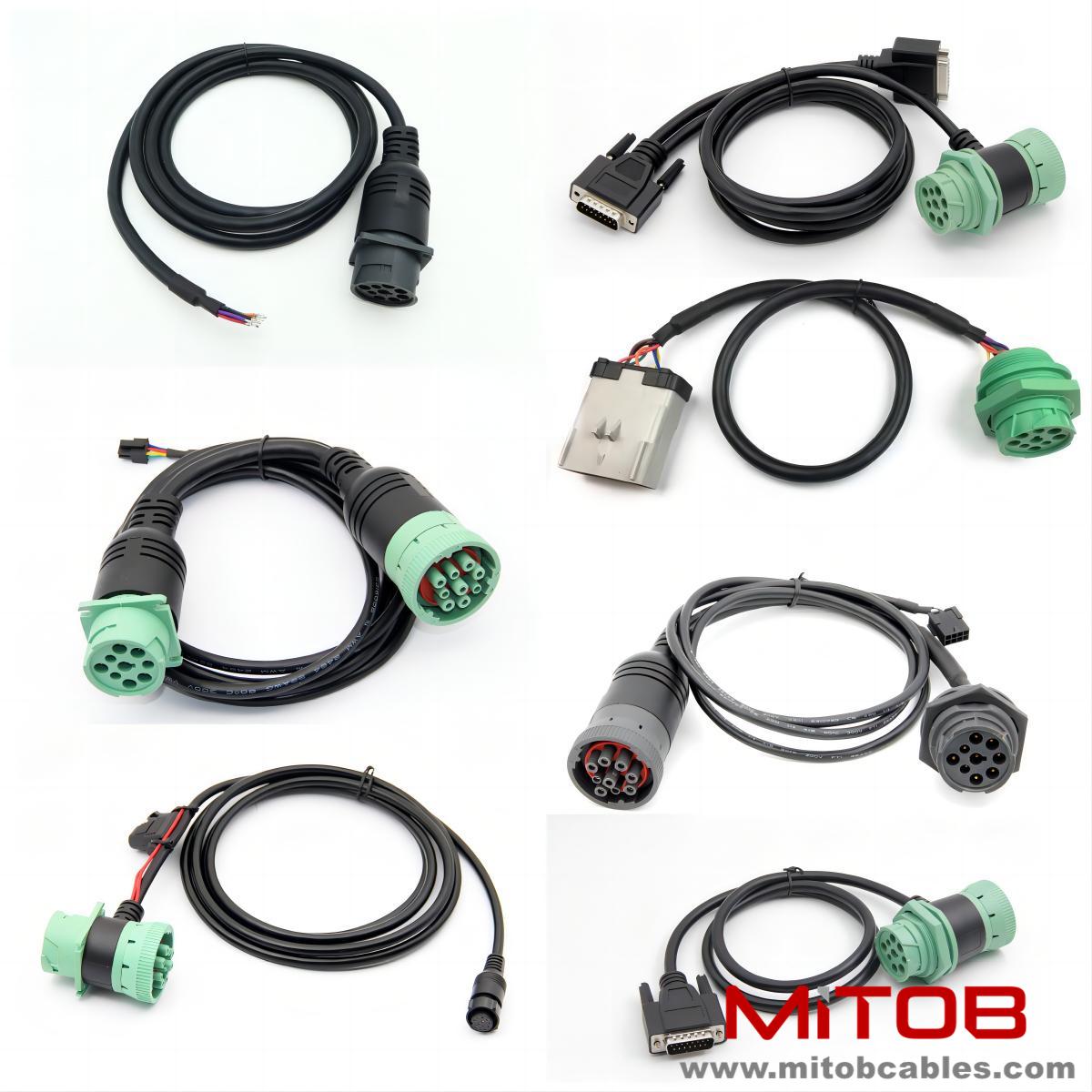

The core function of the J1939 to RP1226 cable is to achieve protocol signal conversion and physical interface adaptation, allowing third-party remote devices to stably access the J1939 bus and obtain real-time vehicle data without damaging the original vehicle line. It solves the pain point of incompatibility between the original J1939 diagnostic interface and the new remote device interface, and is an essential accessory for upgrading and compliance modification of commercial vehicle networking. It is also the foundation bridge for achieving intelligent vehicle management.
