Common troubleshooting methods of J1939 to OBDII cables

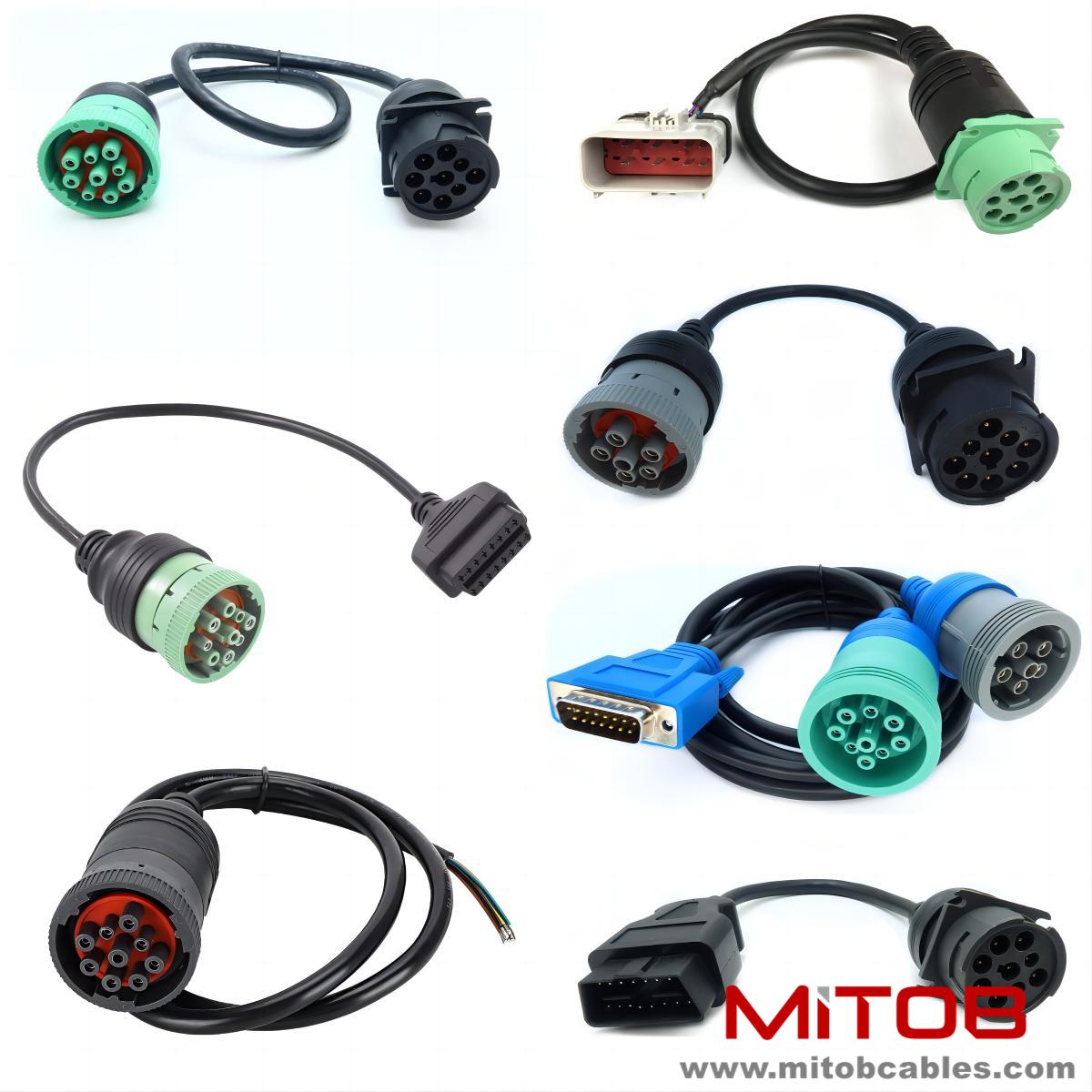

When using J1939 to OBDII cables, it is common to encounter problems such as equipment failure to recognize, data reading failure, garbled characters, and connection interruptions. Most of these problems are not caused by vehicle or equipment failures, but by improper interface, wiring, settings, and operation. Mastering basic troubleshooting methods can quickly solve various common problems without the need to replace accessories.

Problem 1: The diagnostic equipment cannot recognize the vehicle and there is no data feedback. Prioritize investigating physical connections, checking whether the interfaces at both ends of the cable are securely plugged in, whether the pins are bent, oxidized, or dirty, and cleaning the interfaces before re plugging and unplugging; Secondly, confirm that the vehicle ignition switch is in the ON position, and for some models, the brake needs to be pressed to activate the diagnostic interface; Finally, check the protocol settings.

Problem 2: garbled data reading, packet loss, and abnormal parameter display. The core reason is electromagnetic interference or poor wire quality. First, keep the cable away from interference sources such as the vehicle engine and wiring harness, and avoid bundling it with the power cord; Replace high-quality cables with intact shielding, as low-quality unshielded wires are highly susceptible to interference.

Problem 3: The connection is intermittently interrupted, sometimes reading successfully and sometimes failing. Mostly due to loose interfaces or loose wire cores, shaking the connectors at both ends of the cable. If the data is intermittent, it indicates poor contact at the connectors. Re plug and fix the cable to avoid detachment caused by vibration during driving; If the joint is intact, it is highly likely that the internal core is broken and a new cable needs to be replaced.

Problem 4: Incomplete reading of fault codes, unable to view exclusive parameters. Due to insufficient cable protocol adaptation, the regular basic version only supports universal fault codes, and the depth parameters need to be selected with full protocol adaptation; At the same time, confirm the diagnostic equipment permissions. Some exclusive parameters for commercial vehicles require unlocking the corresponding vehicle model permissions, not cable faults.

In daily use, regularly cleaning interfaces, avoiding pulling wires, and operating in a standardized manner can significantly reduce the occurrence of malfunctions. If the problem still cannot be solved after troubleshooting, you can replace the cable with the same model for testing, distinguish whether it is cable damage or equipment or vehicle failure, and accurately locate the root cause of the problem.
