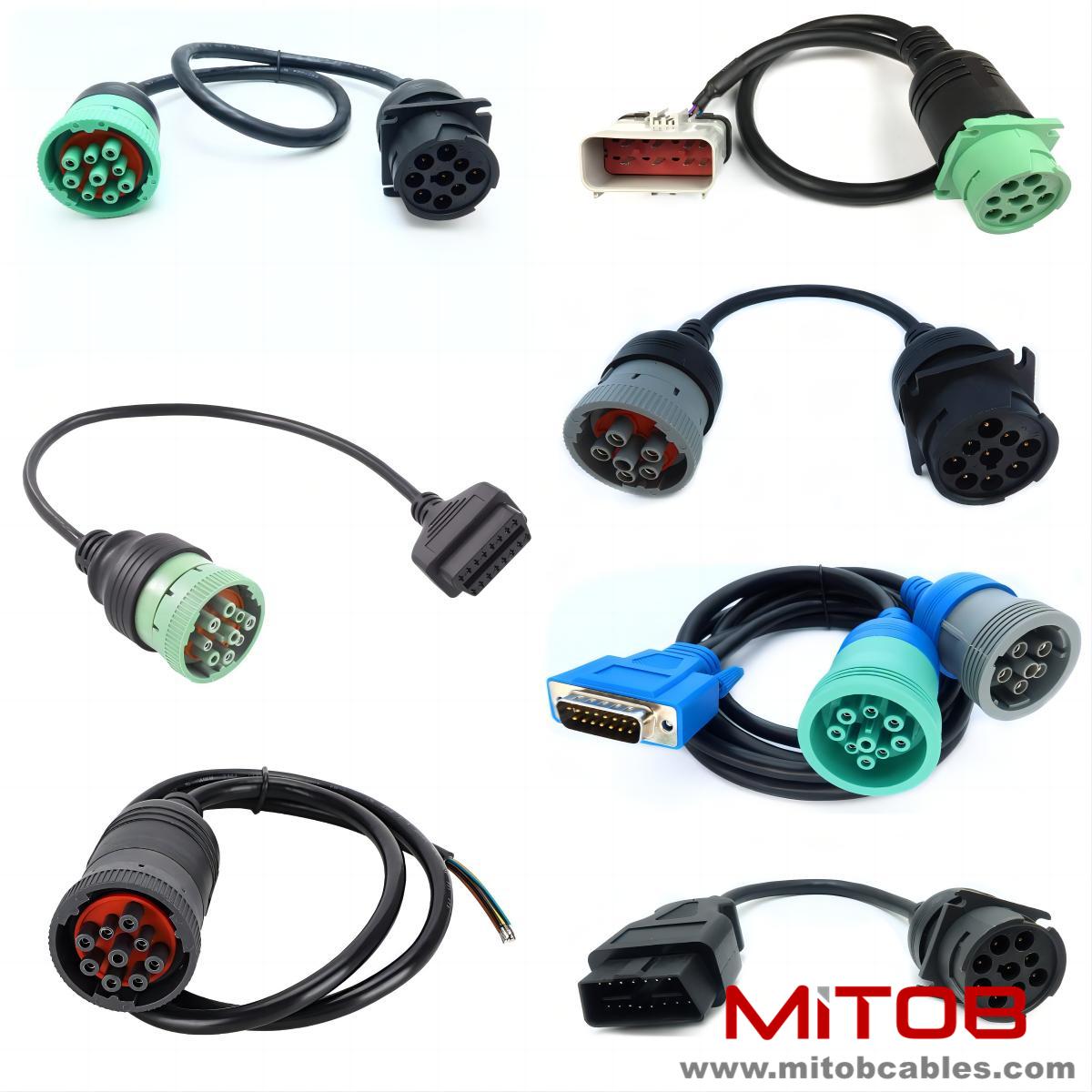

Common faults and quick troubleshooting methods of J1939 to OBD2 cable

Common faults and quick troubleshooting methods of J1939 to OBD2 cable

Over time, the J1939 to OBD2 cable may experience signal disconnection, data unreadability, bit errors, and other malfunctions due to factors such as vibration, high temperature, and wear. Many users, upon encountering these issues, blindly replace the cable, thereby increasing costs. In fact, most common malfunctions can be resolved through simple troubleshooting without the need to replace the cable with a new one.

The most common fault is "unable to read data". When troubleshooting, first check the interface connection, ensuring that both the J1939 and OBD2 interfaces are securely connected without any signs of looseness or oxidation. If there is dust or oil on the interface, wipe it clean with an electrical contact cleaner. Next, inspect the cables for any damage or breakage, focusing on the cable connectors. If there is any damage, repair or replace it promptly to avoid wire short circuits.

Next is "unstable signal and frequent disconnection", which is often caused by electromagnetic interference or poor cable contact. Check whether the cable is close to strong electromagnetic interference sources such as engines and generators. If it is, adjust the cable position to keep it away from the interference source. Also, check whether the cable shielding layer is intact. If the shielding layer is damaged, it will reduce the anti-interference ability and require replacement of the cable. In addition, unstable vehicle voltage may also cause signal abnormalities. A true RMS multimeter can be used to detect the vehicle voltage to ensure it is within the specified range.

Another common fault is "diagnostic instrument error and bit error", which may be due to poor cable compatibility or mismatch in pin definition. In this case, it is necessary to confirm whether the cable supports the vehicle's J1939 protocol version. If it is not compatible, an appropriate cable should be replaced. Additionally, check whether the cable pin assignment is consistent with the diagnostic equipment's requirements. If necessary, contact the manufacturer to adjust the pin definition.
