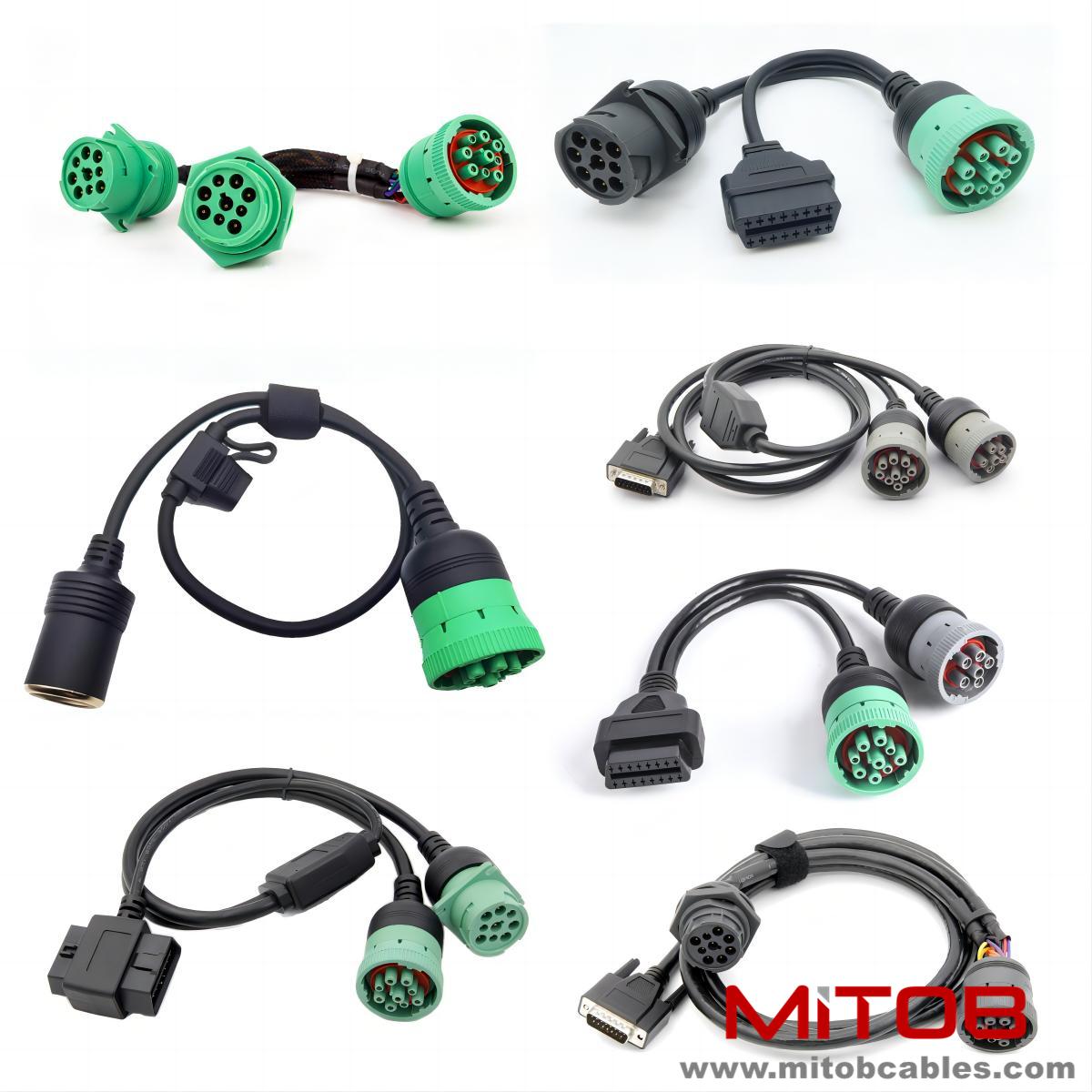

J1939 male to J1939 female and OBD2 splitter Y cable: interpreting protocol conversion of splitter cables

J1939 male to J1939 female and OBD2 splitter Y cable: interpreting protocol conversion of splitter cables

J1939 and OBD2, as two mainstream vehicle communication protocols, differ in multiple aspects: J1939 uses a 29 bit extended ID, supports multi packet data transmission, and has a maximum data volume of 1785 bytes; OBD2, based on corresponding standards, typically uses an 11 bit identifier with a data length limit of 8 bytes. The J1939 male to J1939 female and OBD2 splitter Y cables need to achieve compatibility between these two protocols at the physical layer.

The key to protocol conversion lies in signal mapping and timing control. The internal microcontroller of the cable is responsible for splitting J1939 messages into OBD2 recognizable short frames and reassembling diagnostic instrument instructions into J1939 format.

This process must strictly follow the timing specifications. The J1939 protocol stipulates that the interval between multiple packet data transmissions should be controlled within a certain range, and the response delay of OBD2 is usually less than 100 milliseconds. The cable optimizes buffer management and interrupt handling mechanisms to ensure that the timing requirements of both protocols are met simultaneously, avoiding data loss or bus conflicts.
