What is J1939 splitter Y cable? Core Definition and Function Explanation

What is J1939 splitter Y cable? Core Definition and Function Explanation

In the J1939 communication system of commercial vehicles and heavy equipment, the J1939 splitter Y cable is an indispensable signal distribution component. Its core function is to stably distribute a single J1939 bus signal to two or more receiving devices, achieving synchronous transmission and sharing of signals. Unlike ordinary cables, it is designed specifically for the J1939 communication protocol and can adapt to the complex working environment of heavy equipment, ensuring the stability and reliability of data transmission.

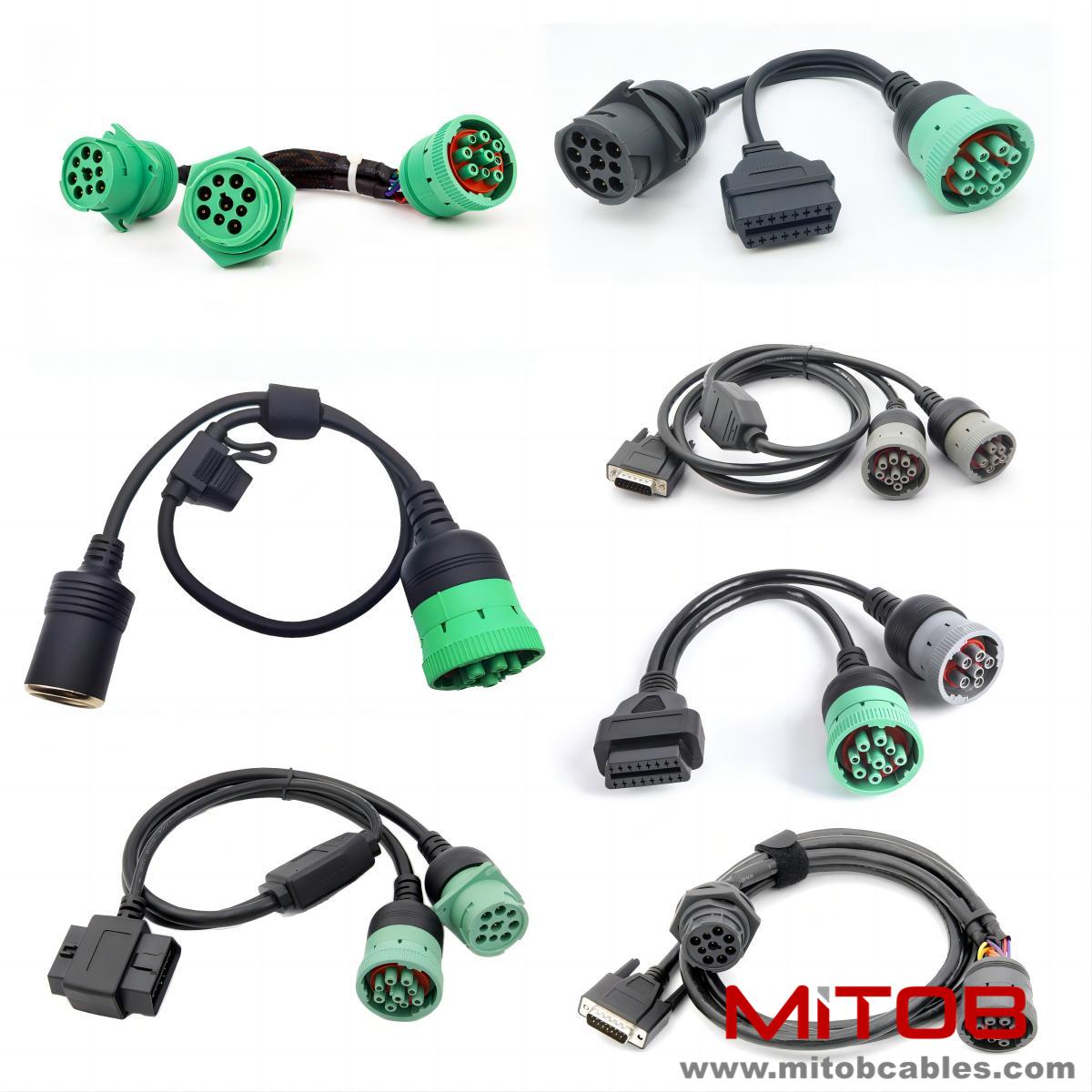

The Y cable of J1939 splitter adopts a "Y" structure, with one end being a common interface connected to the main J1939 bus, and the other end being two branch interfaces connected to various J1939 compatible devices, such as diagnostic instruments, ELD electronic log devices, GPS trackers, etc. Its essence is a signal distributor, which does not require additional power supply and relies on the bus's own signal drive to achieve simultaneous access of multiple devices, solving the pain point that a single bus interface cannot meet the parallel operation of multiple devices.

High quality J1939 splitter Y cables usually have electromagnetic shielding layers, which can effectively resist electromagnetic interference generated by heavy-duty equipment engines and motors, avoiding signal loss or errors.

Compared with ordinary Y-shaped cables, the J1939 splitter Y cable strictly follows the J1939 protocol specifications and uses standard 9-pin Deutsch connectors for interfaces, ensuring compatibility with various J1939 devices without the need for additional adapters and simplifying the installation process. Its emergence not only reduces the cost of bus expansion, but also enhances the flexibility of J1939 system, becoming an indispensable basic component in heavy-duty equipment communication systems.
