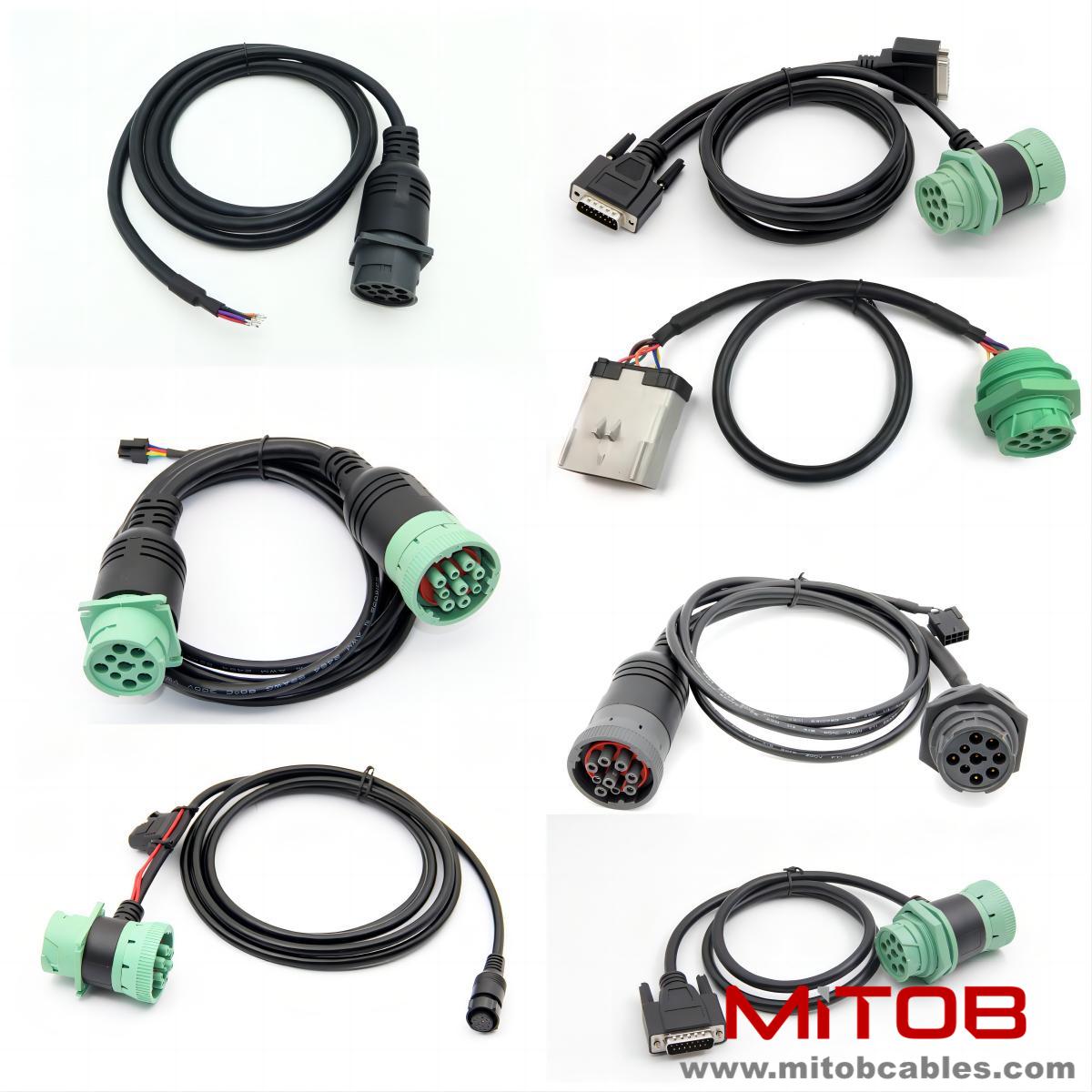

When selecting J1939 to RP1226 cables, multiple factors such as vehicle model, usage scenario, and equipment requirements should be considered to avoid communication failures or equipment damage caused by improper selection. Firstly, it is necessary to confirm the interface type. The RP1226 interface is a 14 pin standard interface, while the J1939 interface is divided into two types: Type 1 and Type 2. The corresponding cable connector needs to be selected according to the vehicle ECU interface type. Some products are compatible with both types of interfaces, making them more versatile.

The quality of cables is the core of selection, and products with high-quality twisted wires and intact shielding layers should be prioritized to ensure anti-interference ability and signal transmission stability. The material of the joint also needs to be carefully considered. The joint with gold-plated contacts has better conductivity and strong corrosion resistance, and can adapt to harsh working environments of vehicles.

In addition, compatibility needs to be considered, the communication speed supported by the cable needs to be confirmed, and whether it is compatible with diagnostic equipment, ELD, and other devices. Finally, priority should be given to selecting products that have undergone strict factory testing to avoid vehicle warranty failure or inaccurate diagnostic data due to product quality issues, ensuring that the selected cables can operate stably for a long time.
