In the field of commercial vehicles, complex electronic systems require efficient and reliable communication protocols to ensure the collaborative work of various components. The J1939 protocol, as the core standard for communication in heavy-duty vehicles, provides a standardized language for key ECUs such as engines and transmissions. The J1939 male to J1939 female cable and OBD2 splitter Y cable are the key tools for seamless connection of this protocol at the physical layer.

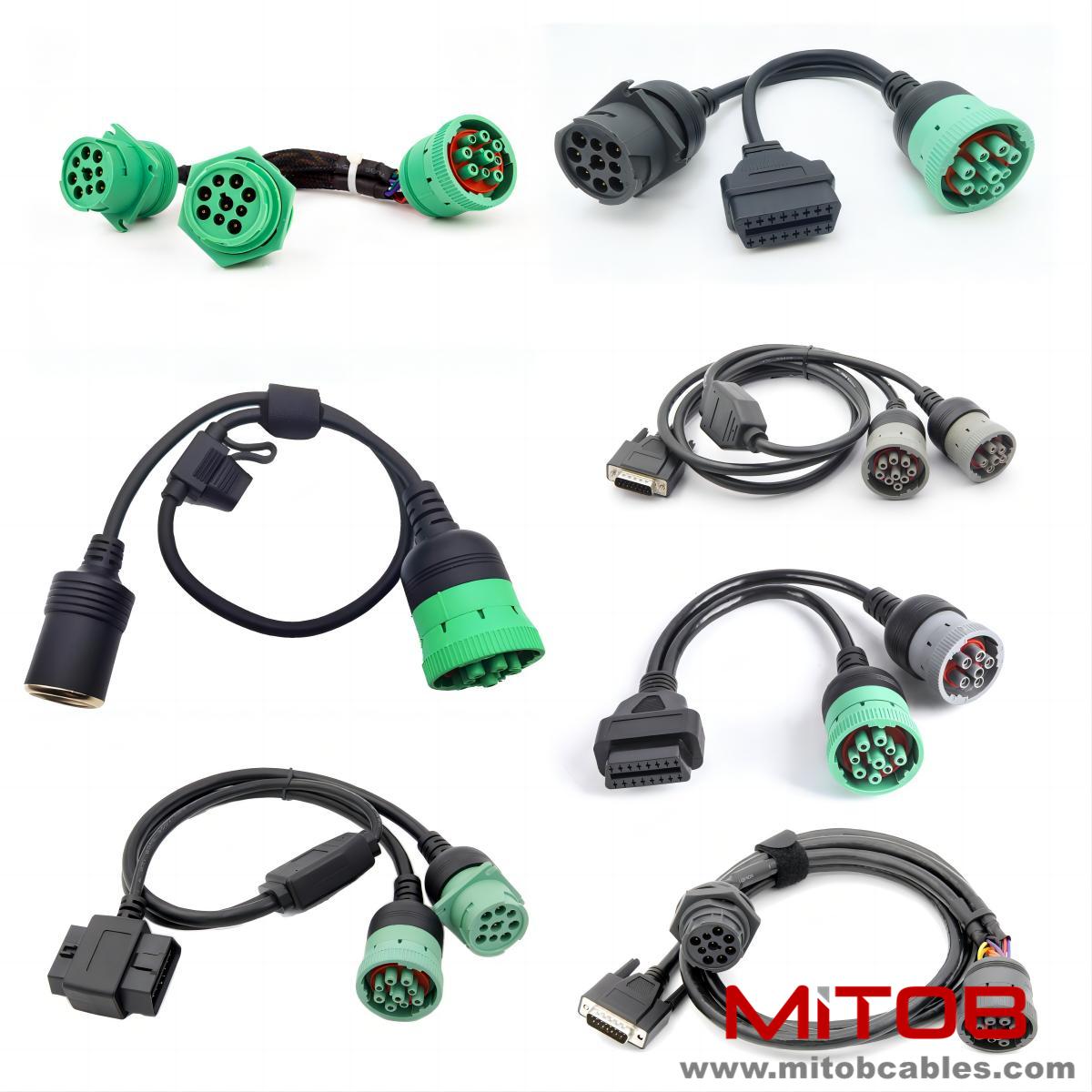

This Y-shaped cable adopts high-precision phosphor copper electroplating technology. The 9-core J1939 male and female head designs ensure stable signal transmission, while the 16 pin OBD2 female head is compatible with mainstream diagnostic interfaces. Its core value lies in the "branching" function: through the Y-shaped structure, users can simultaneously connect the original vehicle J1939 network with external diagnostic equipment without damaging the original circuit. For example, during truck troubleshooting, technicians can insert the J1939 end into the vehicle bus, connect the OBD2 end to a diagnostic instrument, and read real-time parameters such as engine speed and coolant temperature. The other end of the J1939 female head can be extended to connect GPS trackers or data recorders, achieving multi device collaborative work.

From the technical parameters, it meets the J1939-11 physical layer standard and the shielded twisted pair design effectively suppresses electromagnetic interference. In terms of application scenarios, it is not only suitable for heavy trucks, but can also be extended to fields such as engineering machinery and agricultural machinery, becoming a standardized solution for fleet management and remote monitoring.
