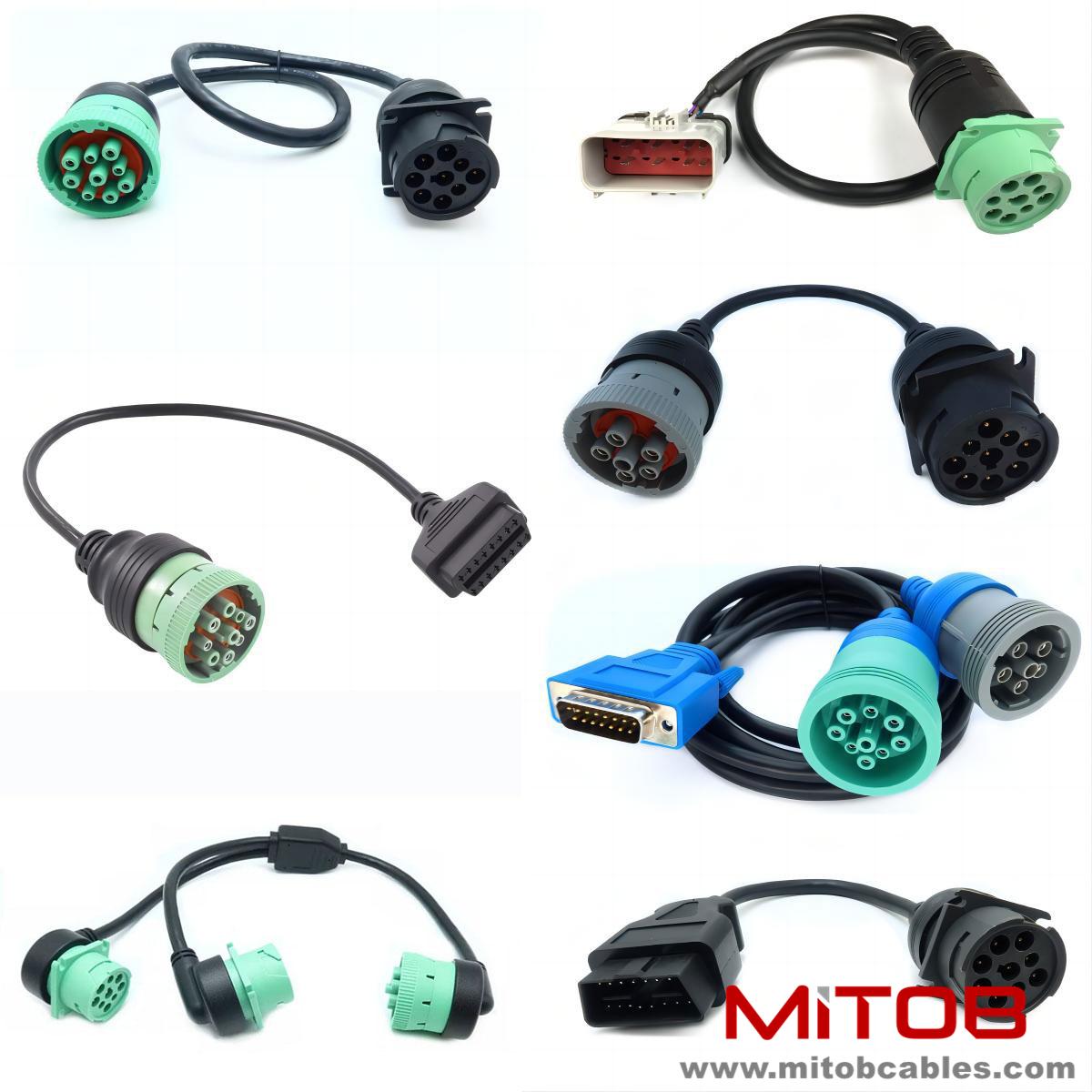

Method for regular inspection and maintenance of J1939 to OBD2 cable

Method for regular inspection and maintenance of J1939 to OBD2 cable

1. Interface cleaning

Weekly dry cleaning: Use compressed air to blow away dust and metal debris from the interface gaps (avoid using cotton swabs, as there may be residual fibers).

Monthly wet cleaning: Dip a cotton swab in anhydrous alcohol to wipe the gold plating layer of the interface, remove oxides and oil stains, air dry before use (the oxide layer can increase contact resistance and cause abnormal data transmission).

2. Electrical performance testing

Conductivity testing: Use a multimeter to measure the resistance of the corresponding pins at both ends of the cable every month. If the resistance increases abnormally, it may be due to core breakage or interface oxidation.

Protocol compatibility testing: Use professional diagnostic software to detect data transmission error rates and troubleshoot cable faults every quarter.

3. Appearance inspection

Daily visual inspection: Check for cracks and bulges in the outer layer of the cable, deformation of the interface, and bending of the pins. If any problems are found, stop using immediately.

Stress point reinforcement: At the connection between the cable and the interface (which is prone to bending and fracture), heat shrink tubing or epoxy resin adhesive can be used for reinforcement to enhance the bending resistance.
