J1939 male to 2 J1939 male splitter Y cable: the "nerve hub" of heavy-duty vehicle communication

J1939  male to 2 J1939 male splitter Y cable: the "nerve hub" of heavy-duty vehicle communication
In the complex electronic systems of heavy vehicles, construction machinery, and agricultural machinery, J1939 protocol serves as the core communication standard, responsible for data exchange tasks of key components such as engines, transmissions, and hydraulic systems. The J1939 to 2 J1939 splitter Y cable is a "neural hub" designed to solve the problem of parallel access of multiple devices. Its design integrates three core advantages: high reliability, flexible expansion, and standardized compatibility.
1、 Technical architecture: Dual channel diversion, signal lossless transmission

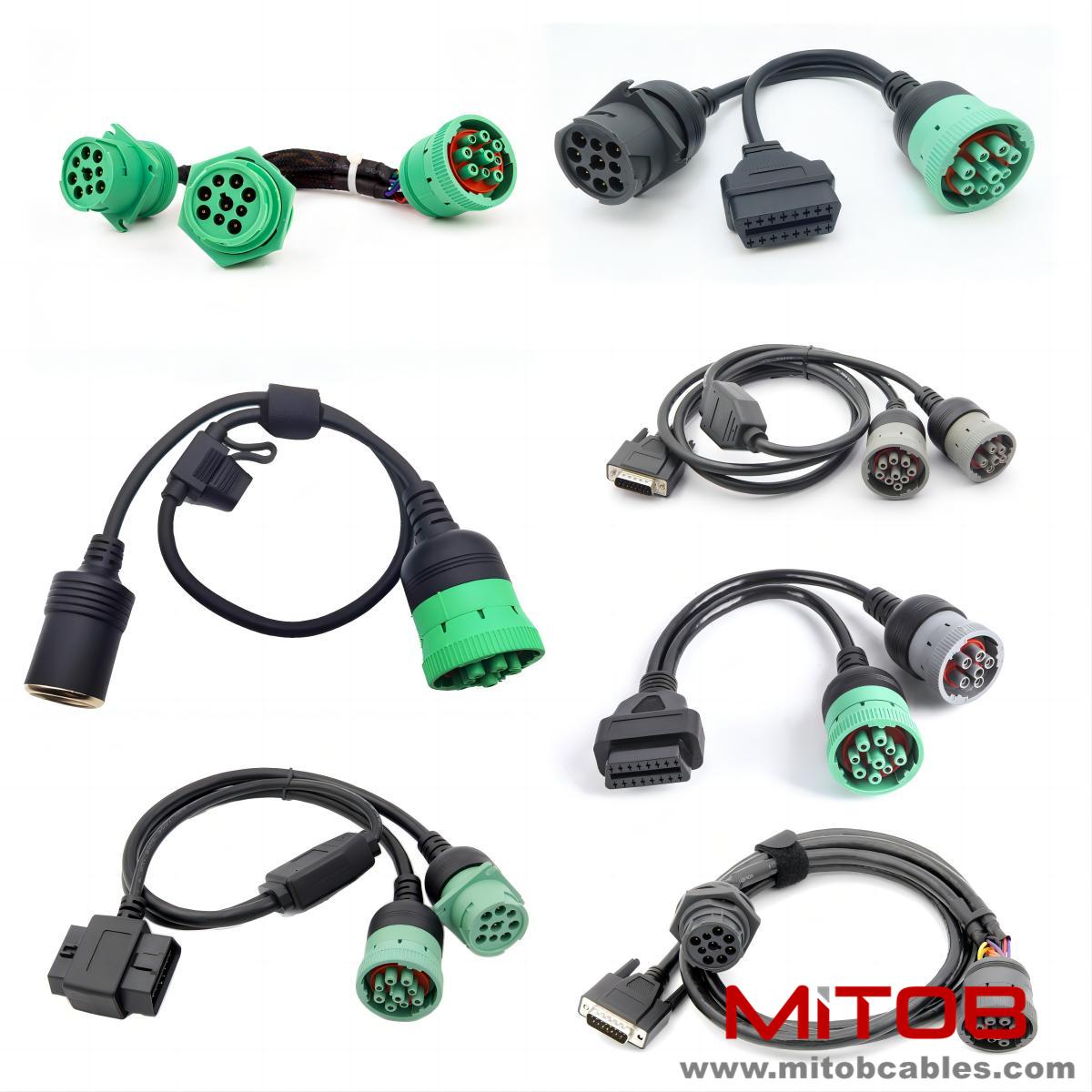

The cable adopts a Y-shaped topology structure of "one in, two out". The main interface is a standard 9-pin J1939 male connector, and the branch end is two 9-pin J1939 female connectors. Signal diversion is achieved through internal high-precision phosphor copper tin plated terminals. Its physical layer strictly follows standards and adopts a shielded twisted pair design to effectively suppress electromagnetic interference (EMI), ensuring stable data transmission even in strong interference environments such as engine compartments.

2、 Application scenario: From single machine debugging to fleet management
Equipment parallel debugging: In the testing of hydraulic systems in construction machinery, engineers need to simultaneously connect pressure sensors, flow meters, and diagnostic instruments. Y-shaped cables can achieve single interface expansion, avoiding interface wear caused by repeated plugging and unplugging.
Remote monitoring of truck fleet: In truck fleet management, J1939 data can be simultaneously transmitted to the onboard T-BOX and driver terminal through a splitter, achieving real-time synchronous display of fuel consumption and fault codes.
Protocol conversion compatibility: Some products integrate J1939 to OBD2 conversion function, which is compatible with traditional diagnostic tools and modern CAN bus devices.

3、 Industry Impact: Promoting the Intelligent Upgrade of Heavy Vehicles
With the acceleration of commercial vehicle ADAS systems and electrification transformation, J1939 splitter cables have become a key link connecting domain controllers, line controlled chassis, and cloud platforms.
From combine harvesters used in field operations to electric heavy-duty trucks used for cross continental transportation, the J1939 to dual J1939 splitter Y cable is serving as an "invisible hub" supporting the evolution of heavy machinery towards greater efficiency and intelligence.
